SAMCO 110BYG Series Two-phase & Three-phase Stepper Motor


Detailed Info:

Temperature Rise: 80 ℃ Max (Rated current)

Step Angle Accuracy: 5%

Ambient temperature: -20 ~+50 ℃

Insulation resistance: 100MΩ  500V DC

Pressure: 500V AC 1min

Insulation class: B

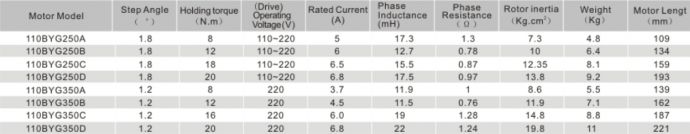

Technical parameters:

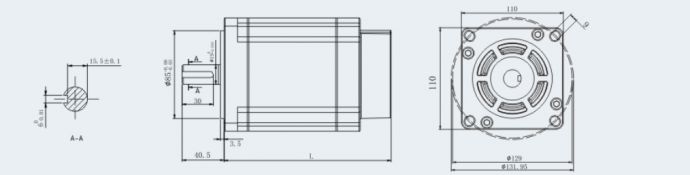

Installation Dimension:  unit=mm

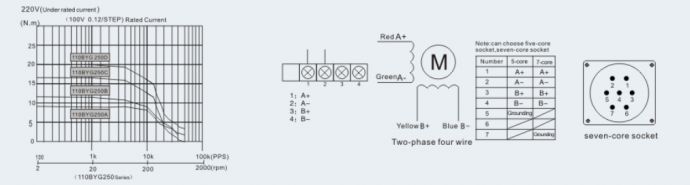

The torque-speed characteristic curve:                                                             Wiring Diagram:



The torque-speed characteristic curve:                                                              Wiring Diagram:
