SMC-K1000TV 2 Axis Turning/Lathe CNC Controller

Feature:

1. 7.0 Inch color display, two axis

2. ARM 9 CPU+FPGA

3. Tool nose radius compensation

4. Ethernet network interface

5. Support B macro function

6. U flash and USB communication

7. PLC function

8. Mutil-language library function.

Function:

1. 7.0 inch color display screen.

2. It is new upgraded version base on CNC4220 two axis CNC lathe system .

3. Adopt ARM9 high performance CPU

4. Super-large programmable FPGA.

5. Real-time multi-task control technology and hardware interpolation technology

6. According to different demand of customer, it can be suitable to match stepping and servo driver,and realize high performance ratio

7. With USB ,Flash and RS232 COM communication etc,. lots of kinds communication mode, it can easy realize the different data transmission and update software.

8. With network interface, the system support remote monitoring and transmission processing of DNC file

9. Open CNC platform, capable of custom-tailoring private system according to the specific requirements;

10. With complete self-diagnostic function, internal and external real-time display, it will show alarming if any exceptional.

11. Support additional panel and external handheld box operation , it is convenient to cutter aligner for customer.

12. Macro-variable , programming of macro definition, enable to lots of kind of logical relation, support macro programming with parameter to being used, it is more convenient to user.

13. DXF+G code template function, switching the DXF file to G code for processing automatically.

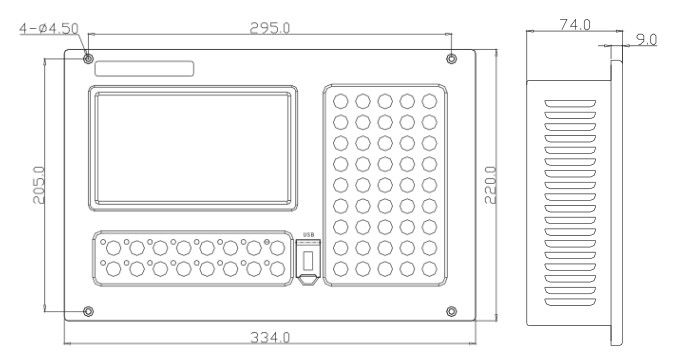

Dimension(mm):
