SAMCO 150BYG Series Three-phase Stepper Motor
Detailed Info:
Temperature Rise: 80 ℃ Max (Rated current)
Step Angle Accuracy: 5%
Ambient temperature: -20 ~+50 ℃
Insulation resistance: 100MΩ 500V DC
Pressure: 500V AC 1min
Insulation class: B

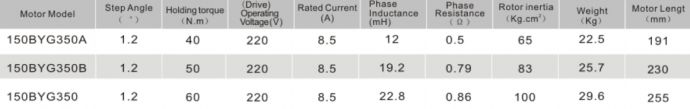

Technical parameters:

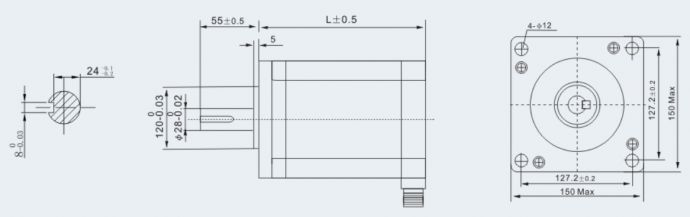

Installation Dimension: unit=mm

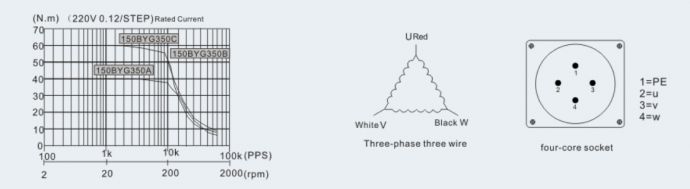

The torque-speed characteristic curve: Wiring Diagram:
