CC-X3 Flame/Plasma Cutting Controller

Features:

1. Multi-torch control, delicate panel, complete control ports, can connect various expansion controllers.

2. Lastest industrial embedded core, faster calculation speed, rapidly deal with various tasks, advanced arc interpolation and lift speed calculation.

3. Easy control, multi-function knob, can accurately adjust speed.

4. Support various compound cutting, plasma, flame, laser, line-draw, drill, can steadly work in the electromagnetism environment.

Technical Parameters:

1. Processor: industrial ARM chip

2. No. of Linkage Axis: 2-4 axes

3. Input/Output: 24 optoelectronic isolation input, 24 optoelectronic isolation output

4. AD/DA: 2 for each

5. Communication: RS232 X 2, RS485 X 1, USB X 1

6. PWM: 2

7. High-speed Count Input: 2, can connect encoder X 2

8. Pulse Equivalent: gear numerator and denominator (range: 1-65535)

9. Store Space: 4G and it supports USB

10. Programming: ISO-G code, graph library and manual programming

11. LCD: 10.4" true color

12. Dimension: 361*222*50mm

13. Working Temperature: 0℃ ～ 40℃

14. Store Temperature: -40℃ ～ 60℃

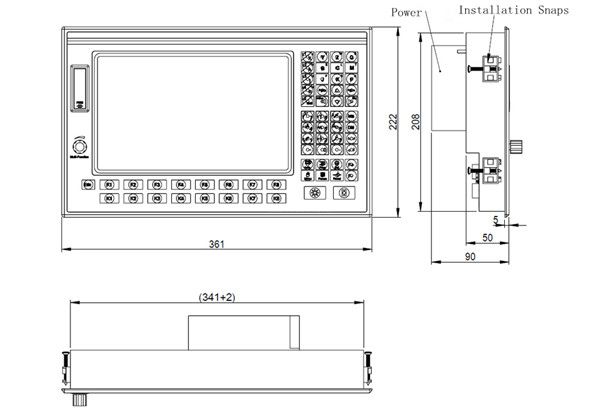

Size:
