SMC-DK300A 3 Axis Engraving Control System
Feature:
1. The engraving control system have three axis control X, Y, Z, aixs, μm interpolation accuracy;
2. Support MasterCAM, Type 3, ArtCam, UG, PROE software for program;
3. Pretreat motion processing with rapid and intelligent speed, program very stable;
4. The max rapid speed can reach 60m/min; Max feed speed can reach 30m/min;
5. Program in common function pattern, is simple and easily to use;
6. Support USB, U disk, RS232 COM communication, help customer realize difference data transmission or software upgrade;
7. Open platform, can customize system for customer’s special requirement;
8. With complete self-diagnostic function, internal and external real-time display, it will show alarm if any unusual arise.
Function:
1. Controlled axes X, Y, Z-axis μm level interpolation precision;
2. You can configure the stepper, servo drives according to different user needs and achieve cost-effective;
3. Means of communication USB, U disk, RS232COM communications, to help users easily implement different data transmission
requirements and software upgrades;
4. With a network interface, support for remote monitoring and DNC file transfer process;
5. Open platform, the system can be customized according to customer demand for the plane;
6. Improve self-diagnostic function, the internal and external displays real-time status, abnormal alarm immediately;
7. Additional support for external panels, handheld box operation, convenient customer knife;
8. Macro variables, macro definition programming, a variety of logic. Support with parameter macro program call, allowing users to program more convenient;
9. DXF + G code template function, the PDF automatically converted to G-code processing;
10. Support MasterCAM, TYPE3, ArtCAM software to generate the processing files;
11. High-speed intelligent motion processing speed pretreatment, smooth processing;
12. Maximum rapid traverse up to 60 m / min, the maximum feed rate of up to 30 m / min;
13. Frequently used functions easy to use graphical programming;
14. With automatic, the instrument on the knife, and other ways of knife;

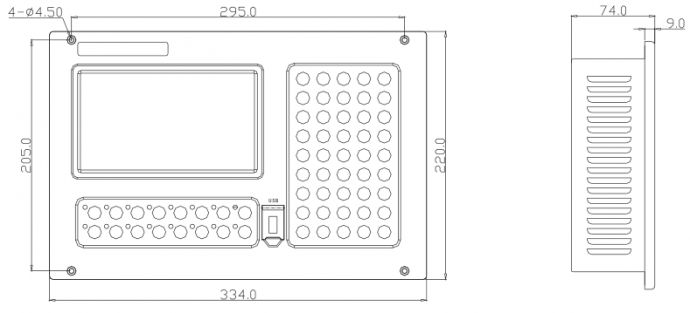

Size:
