SMC-8940A1 Economic PCI Bus 4-axis Motion Control Card

Overview:

SMC-8940A1 motion control card is one of SAMCO axis motion control card PCI bus computer -based members, a system can support up to 16 control card, can control 64 servo/stepper motor, plug and play. Mainly used in multi-axis motion control point, with T-type, S -curve acceleration and deceleration, hardware stop, linear interpolation, hardware cache, position latch function, the product is widely used in testing, advertising, printing, PCB processing and other industries.

Hardware Index:

1. 32-bit PCI bus, Plug and Play;

2. Controllable number of axis: 4 axis;

3. Differential pulse output for each axis, the maximum frequency 2MHz;

4. Each shaft encoder feedback channel A / B phase difference between the pulse input, 32 count frequencies up to 2MHz;

5. Pulse Output Type: Pulse + direction (PUL + DIR) or double-pulse (CW + CCW);

6. Large-capacity hardware cache, the maximum hold 2048 bytes.

Control function:

1. T -shaped, S -shaped curve acceleration and deceleration;

2. Any hardware 2-4 axis linear interpolation;

3. Hardware buffer interpolation, circular interpolation software;

4. Change the speed and movement to achieve the target position;

5. Hardware stop function, multi-axis to move/stop at the same time;

6. Multi-axis position of the external signal to trigger the latch;

7. Zero function in many ways;

8. Handwheel and external signals operating quantitatively driven, continuous driving.

Software support:

1. Operating system: DOS/WINDOWS95/98/NT/2000XP/WINCE, WIN7;

2. Programming environments: C/BC++/VC/VB/C#/C++Builder/Delphi/LabVIEW/EVC;

3. Application examples of open- DOS and Windows.

Application environment:

1. Operating temperature: 0-60℃;

2. Storage temperature: -20-80℃;

3. Temperature: 5-95 % non-condensing.

Dedicated purpose IO:

1. Machinery positive and negative limit position, origin signal;

2. Position latch input signal;

3. Handwheel control signal;

4. Hardware stop signal;

5. Alarm input signal;

6. Alarm clear signal;

7. Servo enable signal.

General purpose IO:

Special signal when not in use can be set to Universal IO, can be up to:

1. 32 general-purpose digital inputs, all optocoupler isolation;

2. 16 open collector outputs.

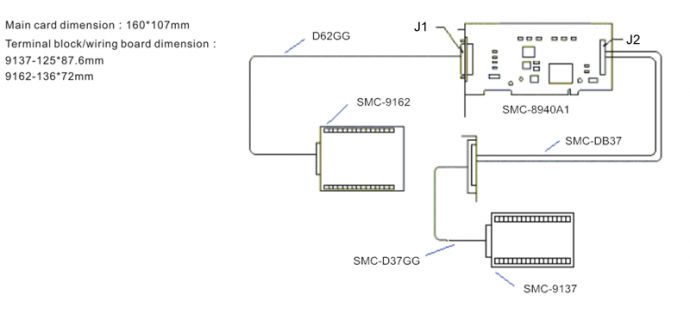

Wiring diagram:

Application industries:

1. Biological, medical equipment;

2. Semiconductor automatic processing and testing equipment;

3. Packaging Equipment: automatic packaging machine;

4. Advertising Equipment: Drawing word machine, slot machine, printing & pressing machine;

5. PCB processing equipment;

6. SMT machine, PCB drilling machine.
