SMC-8960 High-performance PCI BUS 6 Axis Motion Control Card

Overview:

SMC-8960 motion control card is one of the public members of six-axis motion control card for PCI bus-based computer, a system can support up to 16 control card, can control 96 servo / stepper motor, plug and play . Mainly used in multi-axis motion control point with T-type / S-shaped curve, hardware stop, position the latch, encoder feedback, automati-cally returns to zero, the hand-wheel drive, linear interpolation, caching interpolation functions, the product widely used in testing, advertising, printing, placement and other industries.

Hardware Index:

1. 32-bit PCI bus;
2. Number of controllable axes: 6-axis;
3. the highest frequency 2MHZ;
4. pulse output types: Pulse + direction or double-pulse;

5. plug and play each shaft encoder feedback channel A / B phase difference between the pulse input, 32 count, frequency up 2MHZ;
6. 2M-capacity hardware cache.

Control function:

1. T-type, S-type acceleration and deceleration;
2. Any 2-6 axis linear interpolation;
3. Any large-capacity cache 2-6 axis interpolation;
4. The movement to change the speed and real-time target position;
5. Hardware stop function, multi-axis with the same stop moving;

6. External signal multi-axis position of the trigger latch;
7. External signal (handwheel or universal input signal) quantitatively driven, continuous drive;
8. Manual deceleration function;
9. Multi-mode zero function.

Software support:

1. Operating system: DOS/WINDOWS95/98/NT/2000XP/WINCE, WIN7;
2. Programming environments: C/BC++/VC/VB/C#/C++Builder/Delphi/LabVIEW/EVC;
3. Application examples of open-DOS and Windows.

Application environment:

1. Operating temperature: 0-60℃;
2. Storage temperature: -20-80℃;
3. Temperature: 5-95% non-condensing.

Dedicated purpose IO:

1. Machinery positive and negative limit;
2. Origin signal;
3. Position latch input signal;
4. Handwheel control signal;
5. Hardware stop signal;
6. Alarm input signal;
7. Alarm clear signal;
8. Servo enable signal.

General purpose IO:

Special signal when not in use can be set to Universal IO, can be up to:
1. 32 general-purpose digital inputs, all optocoupler isolation;
2. 16 open collector outputs.

Configurable IO:

1. 16 configurable input / output signals, each 8-way as a group, can be set to input or output.

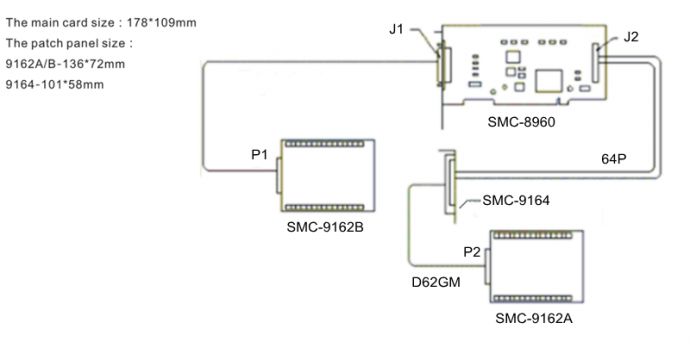

Wiring diagram:

Application industries:

1. Machine vision and automatic testing equipment, diamond cutting machines, printing presses, dispenser, wire bonders;
2. PCB processing equipment: screen printing machine, SMT machines, PCB drilling machines, multi-axis control equipment.
