SMC-8912A1 High-performance PCI BUS 12 Axis Motion Control Card

Overview:

SMC-8912A1 motion control card is one of the member of SAMCO's twelve axis motion control card which is based on computer PCI bus, one system can support up to 10 control cards, 120 road servo / stepper motor can be controlled, insert machine can be used. Mainly used in multi-axis motion controller, with functions of T velocity curve, linear interpolation, encoder feedback, continuous driving, speed and target position can be real-time changed while moving, hardware cache, etc, which are widely used in testing, advertising, printing, spring machines and others' industries.

Hardware Index:

1. 32-bit PCI bus, plug and play;

2. Controllable axes: 12 axes;

4. Each axes encoder feedback channel A / B phase difference between pulse input, 32-bit count, frequencies up to 2MHz, pulse frequency multiplication: 4 frequency multiplication;

5. Pulse Output Type: Pulse + direction (PUL + DIR) or double-pulse (CW + CCW).

Control function:

1. T type acceleration and deceleration;

2. Arbitrary 2-12 axis linear interpolation;

3. 2M capacity hardware cache;

4. Changing the speed and target position in real time while moving;

5. Can read out the logical position, actual position, the driving speed, acceleration, the driving state in real time while moving;

6. Probe features: 8-channel high-speed probe response input;

7. Zero function in many ways.

Software support:

1. Operating system: DOS/WINDOWS95/98/NT/2000XP/WINCE, WIN7;
2. Programming environments: C/BC++/VC/VB/C#/C++Builder/Delphi/LabVIEW/EVC;
3. Application examples of open-DOS and Windows;

Application environment:

1. Operating temperature: 0-60℃
2. Storage temperature: -20-80℃
3. Temperature: 5-95% non-condensing

Special IO:

1. Machinery positive and negative limit, origin signal ( not set to generic IO);
2. Probe input signal;
3. Alarm input signal;
4. Alarm cancellation signal;
5. Servo using a signal.

General purpose IO:

Special signal when not in use can be set to Universal IO, can be up to:
1. 48 general-purpose digital inputs, all optocoupler isolation;
2. 32 open collector outputs.

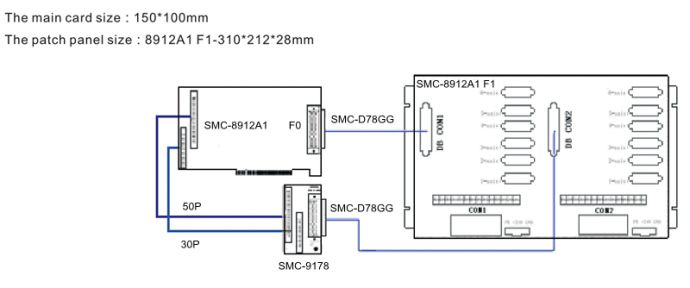

Wiring diagram:

Application industries:

1. Machine vision and automatic test equipment, printing presses, wire bonders;
2. PCB processing equipment: screen printing machine, SMT machines;
3. PCB drilling machines, multi-axis control equipment, spring maker.
